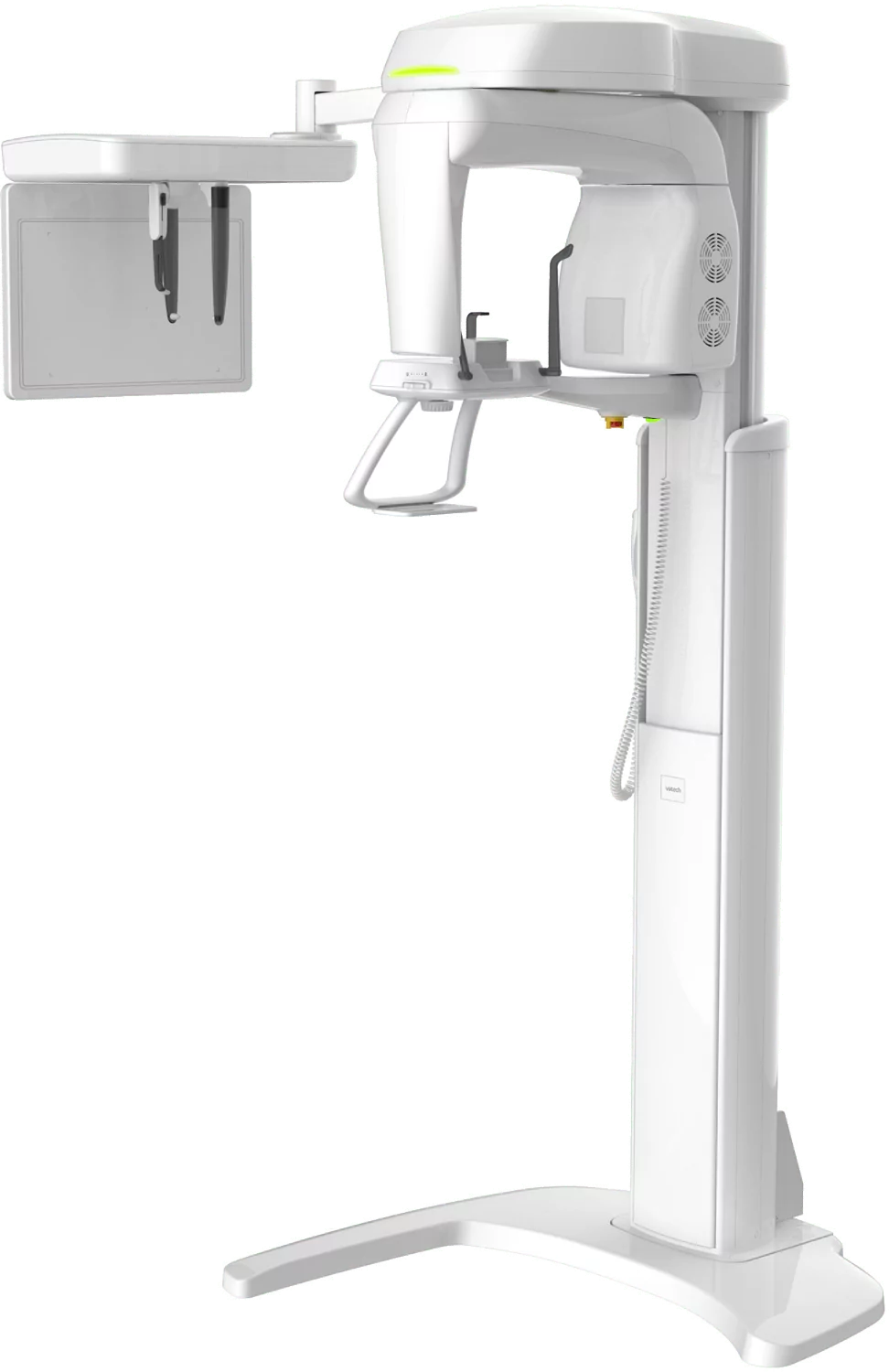

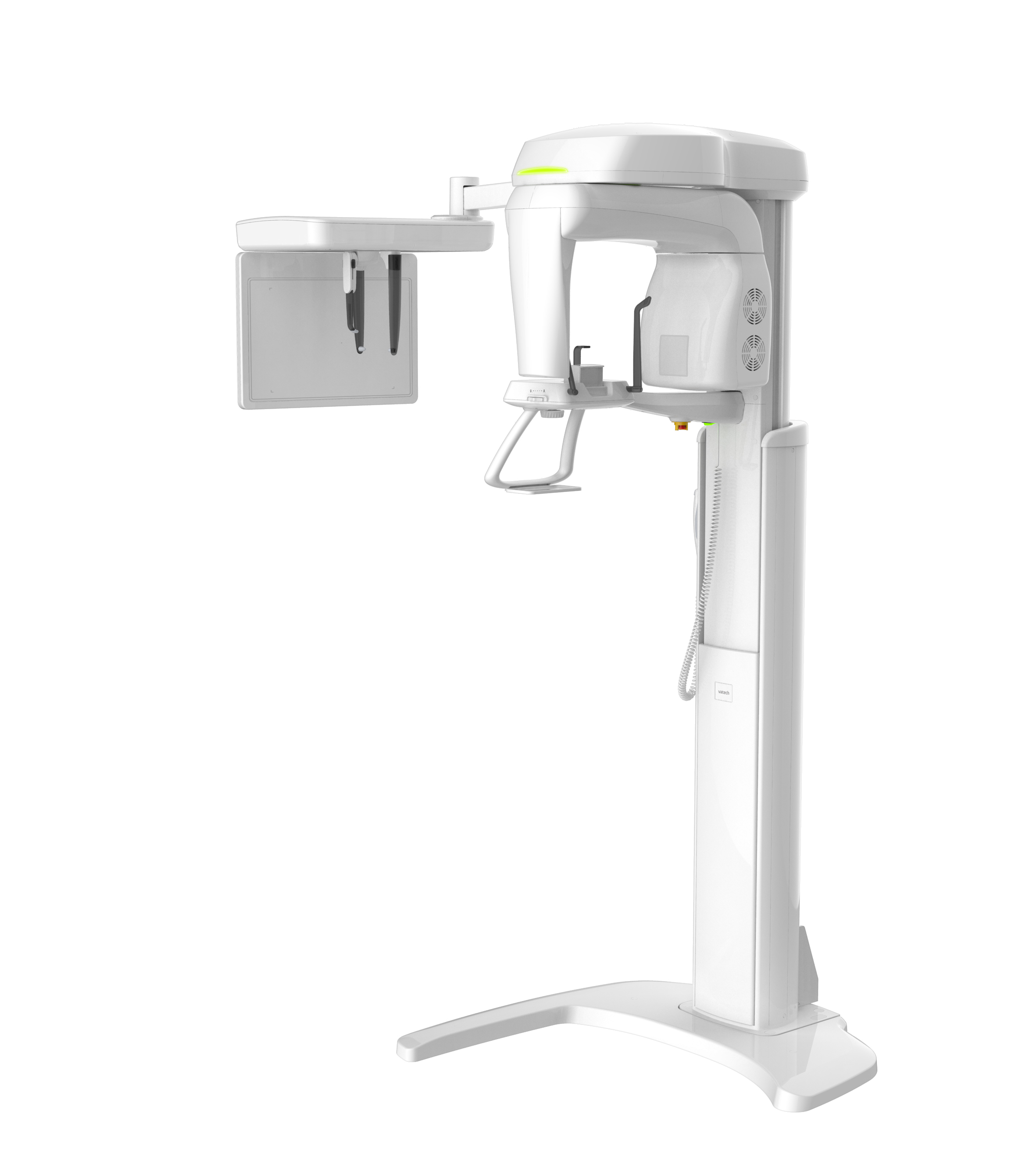

The Vatech PaX-i Plus is a high-performance panoramic imaging system designed to deliver clear, consistent diagnostic images with fast workflow and excellent ease of use. Built for busy dental practices, it provides dependable image quality, intuitive patient positioning and flexible imaging programs that support routine diagnostics, orthodontics and treatment planning. With reliable performance, ergonomic design and strong clinical versatility, the PaX-i Plus is a trusted panoramic platform for modern practices.

‍

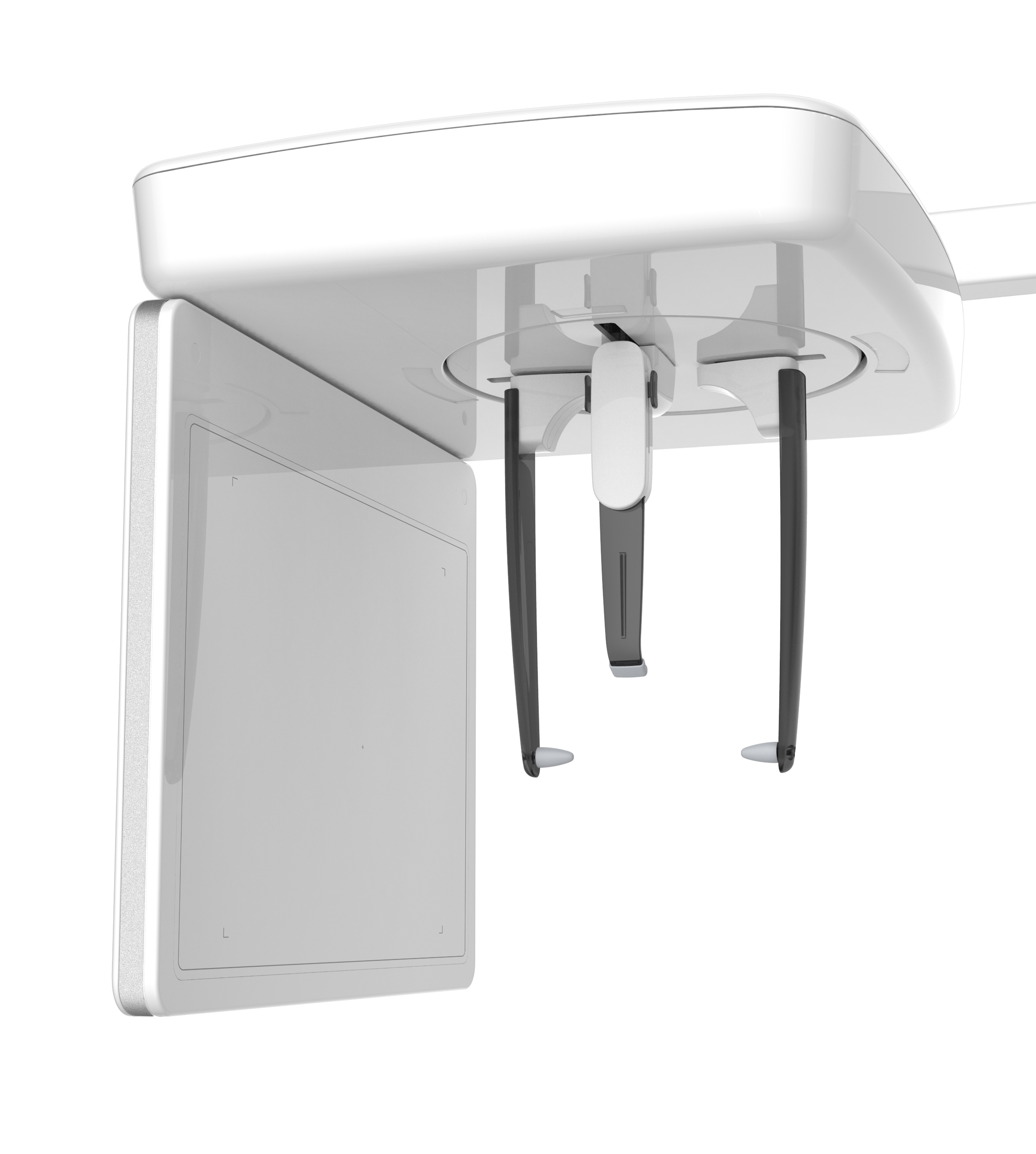

• Panoramic imaging with optional cephalometric imaging available in the same unit.
• Two dedicated imaging sensors are used to deliver high-quality, consistent diagnostic images.
• Rapid cephalometric scanning with scan times of around two seconds helps reduce motion blur and improve clarity.
• Multiple panoramic imaging modes are available including Narrow, Normal, Wide, Child mode, Bitewing mode, TMJ and Sinus programs.
• The system captures images in 14-bit grey scale to support detailed, accurate diagnostic viewing.
• Easy-to-use imaging software allows efficient viewing, analysis and clear patient communication.
• Patient positioning is stable and simple, supporting repeatable and reliable scanning.
• Fast image acquisition supports efficient workflow and smooth patient throughput.
• The compact and ergonomic design fits comfortably into most practice environments.

• Functions: Panoramic imaging with optional cephalometric capability.
• Focal spot size: 0.5 mm for sharp detail.
• Panoramic scan time: Approximately 10 to 14 seconds depending on program selected.
• Cephalometric scan time: Approximately 1.9 to 5.4 seconds depending on mode and setup.
• Tube voltage and current: Adjustable between 60 to 99 kV and 4 to 10 mA.
• Grey scale depth: 14-bit for detailed image contrast and clarity.
• System weight: Approximately 120 kg including cephalometric arm.
• Dimensions: Approximately 1930 mm length, 1200 mm width, 2310 mm height.
• User interface: Designed for straightforward, intuitive operation.
• Software compatibility: Integrates with dental imaging and practice software environments.
• Installation: Floor-standing digital panoramic system suitable for dedicated imaging space.
• Clinical applications: Suitable for routine diagnostics, orthodontics, TMJ assessment and sinus evaluation.
• Build quality: Sturdy construction designed for daily high-reliability clinical use.
